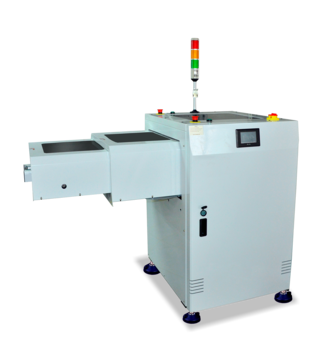

CYT 330L Telescopic Conveyor Series

CYT 330L Telescopic Conveyor Series

Part Number: CYT 330L Clock fast Lead Time: 4 weeks

The unit provides a 'normal open' passage in a PCB assembly line.

Conveyor Model
Pricing Information
Qty:

Unit Price:
$5,600.00
$5,350.00

Total: $5,350.00

Customers Who Bought This Item Also Bought

Carousel prev Carousel next

Overview

Telescopic Conveyors are produced to create a passage way in your production line, providing operator access for maintenance, transport of material, etc. An integrated conveyor segment slides across the opening to deliver the PCB to downstream machine. The passageway length can be customized to your needs.


Main Features

Programmable
squeegee system
  • The unit provides a 'normal open' passage in a PCB assembly line.
  • Fully enclosed design
  • Normal Opened
  • Electrically driven for smooth extension and retraction.Image capture system
  • Smooth and parallel width adjustment.(lead screw)
  • SMEMA compatiblet

specs

Machine Dimension (Extended) (L x W x H) 1500 x 730 x 1300
Weight 150kg
PCB Length 50mm - 457mm
PCB Width 50mm - 330mm
PCB Thinckness 0.6mm – 4.5mm
Fixed Rail to Front Dimension(A) 258mm
Transport Height 910mm ±30mm
Transfer Direction Left to right
Operation Side Front of the machine
Fixed Rail Front of the machine
Interface SMEMA
Conveyer Concep ESD flat belt
Belt Speed 0.5-20m/min adjustable
PCB Edge Support 3mm
Components Clearance Bottom 30 mm or specify
Power Supply 230 VAC/50 Hz/1 Ph
Power Consumption 100VA max. or specify
Machine Cycle Time ± 16 seconds
Passageway 750mm or specify
Load Bearing 1.5kg/PCB
