GF-125 HC NEW Automatic Solder Reflow Oven
Best Seller

GF-125 HC NEW Automatic Solder Reflow Oven

Part Number: GF-125 HC/HT Pdf file Data Sheet

The GF 125 HC Convection reflow oven for PCBs with 5 zones on top and five bottom vertical heating zones, the NEW GF-125 HC/HT is an economic solution for automatic medium volume production runs. Utilizing horizontal convection heating technology, the GF-125 HC/HT provides uniform temperature profiling across the entire PCB board for enhanced SMT process control. With temperatures up to 400°C, the GF-125 horizontal convection reflow oven is capable of lead-free soldering.

Pricing Information

Unit Price:

Total: $17,995.00

Customers Who Bought This Item Also Bought

Carousel prev Carousel next


The GF-12/120/125 series heating profiles are superior to other ovens in their class. Each of the vertical heating zones is programmable through the controller which stores up to 100 profiles. The oven includes a real-time temperature profiler port. When a thermocouple is attached to the PC board, the actual board level temperature profile is displayed graphically as the board travels through the oven. The conveyor speed, heating elements, cyclonic generators and cooling fans are all programmable so the unit is ideal for high-mix pcb manufacturing runs. The oven also features SPC fault monitoring & reporting, battery backup and a 7 day timer for automatic machine start-up.

Main Features

On-board LCD controller
for easy and flexible programming control
  • 5 vertical heating zones plus 1 cooling zone
  • Integrated enclosed stand with 12" wide mesh conveyor
  • Stainless steel conveyor and chambers
  • Clamshell hood design with Easy Lift
  • Viewing window with lighted interior
  • Real time graphic temperature profiler to assist in profiling of board
  • Status light tower option
  • Reflow oven is Lead and Lead-free compatible

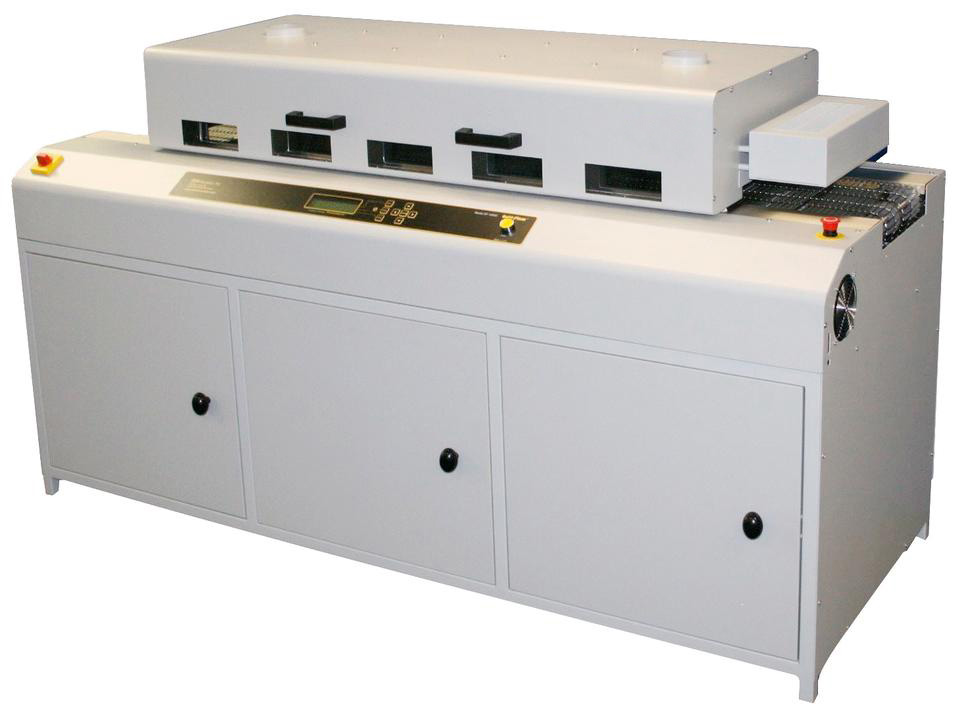

Gf 125 hc automaitic solder reflow oven big


Max. Pcb Width 304mm (12 inches)
Max. Pcb Height 35mm (1.375 inches)
Heating Zones 5 top, 5 bottom
Max. Temperature 400°C (752°F)
Heated Tunnel Length 1423mm (56 inches)
Convection Forced air horizontal convection
Conveyor Mesh belt
Conveyor Extensions Yes
Venting Two (2) 102mm (4”) dia. Flanges, 200 CFM each
Cooling Station S One (1)
Cooling Zone Fans Two (2)
Cyclonic Generators Ten (10)
Nitrogen Option Option
PC Interface Option
Heater Peak Power 14.5 kW
Power Requirements 220 VAC, 50/60 Hz, 3Ø , 70 Amp
Length 2133mm (84 inches)
Width 813mm (33 inches)
Height 1245mm (49 inches)
