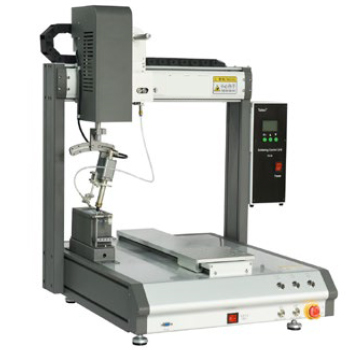

SR300 Soldering Robot

SR300 Soldering Robot

Data Sheet
SR300 automatic soldering robots ensure precise soldering for circuit boards in engine control units, sensor arrays, and infotainment modules. The 3-axis soldering robot automatic delivers secure, reliable connections, meeting the automotive industry’s strict safety and performance.

The standards robot comes with a single PCB station/platform that can move in Y direction , and the tip can move in X,Y,Z, directions make it a reliable 3 axis soldering robot and comes standard with soldering wire feeder.
Pricing Information
QTY:
1
Request a Quote
SR300

Main Features

Four axis X, Y, Z, R adopts quality step motor
  • Cost saving, high efficiency operated by only one person.
  • Four axis X, Y, Z, R adopts quality step motor with its control system, making the machine run smoothly and with precision.
  • It is equipped with automatic soldering tip cleaning device, which can improve soldering quality and prolong lifetime of soldering tips.
  • High frequency induction heating system has rapid temperature recovery time; the heating element adopts silver coil which can ensure long lifetime.
  • Optional smoke cover and smoke extractor can provide a very clean work environment.
  • Various soldering tips can meet different process requirements; customized soldering tips are also available.

Specs

Model SR300
Platform Number 1
Head Number 1
Heating Power 150W
Max. PCB Size 300 x 300 mm
Max Move Speed X,Y axis: 600-800 mm/s. Z axis: 400 mm/s. R axis: 300°/s
Soldering Tip Clean Steel wire and air pressure (Optional: Rotating Brush Clean)
Solder Wire Φ0.6~1.2mm solder wire
Solder Feeding Speed 1~50mm/s
Repeated Accuracy ±0.02mm
×
