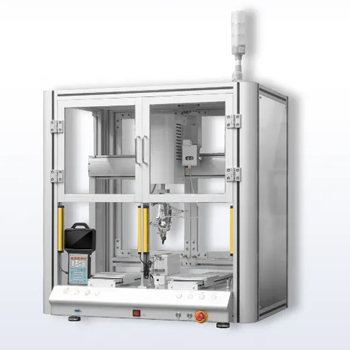

SR250D Soldering Robot

SR250D Soldering Robot

Data Sheet
SR250D is a robotic soldering system with dual working areas and a single soldering head. Compared with SR300, it can save about 21-35% of working time.

Standard with automatic feed, this soldering robot is vital for modern manufacturing, delivering high-quality soldering designed for diverse production needs. Dual heads work simultaneously for higher efficiency, ideal for smd soldering robot tasks.
Pricing Information
QTY:
1
Request a Quote
SR250D

Main Features

Dual-head soldering robot ideal for medium to high-volume production
  • Fixtures can be customized according to the product.
  • It features a four-axis (X, Y, Z, R) system that adopts a quality step motor with its control system, ensuring the machine runs smoothly and with precision.
  • This dual-head soldering robot is ideal for medium to high-volume production, particularly where precision and efficiency are crucial.
  • Anti-stuck soldering and stuck soldering detection systems are included to make production smoother.
  • The product is described as an industrial PCB solder desktop robot, capable of handling complex tasks in electronics and automotive soldering effortlessly.

Specs

Model SR250D
Platform Number 2
Head Number 1
Heating Power 150W
Max. PCB Size 250 x 250 mm for each Platform
Max Move Speed X,Y axis: 600-800 mm/s. Z axis: 400 mm/s. R axis: 300°/s
Soldering Tip Clean Steel wire and air pressure (Optional: Rotating Brush Clean)
Solder Wire Φ0.6~1.2mm solder wire
Solder Feeding Speed 1~50mm/s
Repeated Accuracy ±0.02mm
Temperature Range Room temperature-500°C
Temp Accuracy ±1°C
Control Mode Teach Pendant
Air Pressure 4.5~6Kg/cm²
Power Supply AC220V±10%, 50/60HZ
×
