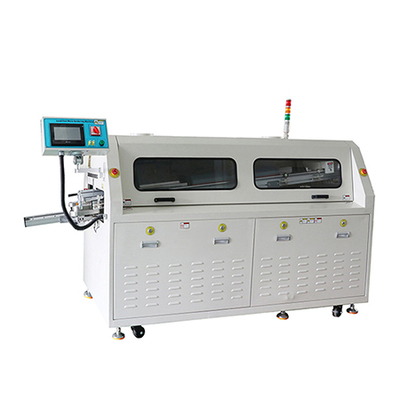

W2 Wave solder

Overview

This W2 is an automatic lead-free wave soldering device that is totally equipped with flux spraying system, touch screen and PLC control system, finger cleaning system, titanium solder pot, one preheating zone, for PCBs with a maximum size of 350mm, high automation, reliability and performance.

The entire machine assumes industrial personal computers as its core controller, automatically controlled instrument to bring you high automation, reliability and performance. internationally advanced wave-soldering processes and technologies, thus achieving a high-quality soldering.

Main Features

• New and streamlined profile, compact structure, beautiful appearance; open-type widespread front toughened glass doors; rear sliding doors to save more space for easy maintenance.
• Standard with preheating zone, soldering zone and cooling zone with circulation protection. Soldering waves can be adjusted arbitrarily as desired.
• Spray system is controlled by stepper motors. Its spraying flow and flow shape can be conveniently adjusted and it is suitable for different fluxes.
• PCB loading system is integrated with the main conveyor system to ensure PCB’s smooth loading into the conveyor system.
• The inclination of PCB conveyance guide rail can be adjusted.
• Solder oven and preheating temperature are controlled by means of latest closed loop and adjusted by analog signal. Its voltage phase angle is adjusted automatically for higher temperature stability, thus eliminating the impact of high current caused by traditional ON/OFF switch.
• Wave speed can be adjusted by means of intelligent frequency converter and its parameter can be set from man-machine interface.

Specs
