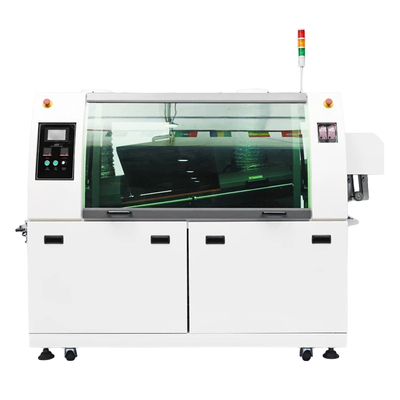

VCT WS 250 DS Compact Wave Solder Machine

VCT WS 250 DS Compact Wave Solder Machine

Part Number: VCT WS 250 Product Brochure
This compact wave solder machine is very reliable, designed for high quality solder joints, it has all, touch screen control, spray fluxer, two forced hot air convection preheating zones, temperature controller, solder pot temperature 300 ℃ for lead free PCBs.
Pricing Information
QTY:
Unit Price:
$9,950.00
Shipping Price:
$1,850.00
Total: $11,800.00
VCT WS 250 DS
Compact Wave Solder Machine

Main Features

  • Dual wave
  • Precise automatic flux spraying, uniform coverage and low consumption.
  • Intelligent constant temperature control.
  • Industrial-grade modular structure, low failure rate and easy maintenance.
  • PLC touch screen control, visualized parameters, easy operation and data storage.
  • Energy-saving heating system, low power consumption and running cost.
  • RoHS compliant.

specs

Model WS 250DS Touch Screen Wave Soldering
Substrate Width Max 250mm (customization 300mm)
PCB Board Transportation Height 760±10mm
PCB Board Transportation Speed 0-1.8M/Min
Preheating Zone Length 900mm
Number of Preheating Zones 2
Preheating Zone Power 6kw
Preheating Zone Temperature Room temperature - 200 ℃
Heating Method Full hot air
Number of Cooling Zones 1
Cooling Method Natural wind cooling
Tin Furnace Power 9kw
Solder Pot Capacity 180-220KG
Solder Pot Temperature 300 ℃
Temperature Control Method Meter control
Transportation Direction Left to right
Whole Machine Control Mode Instrument control + touch screen
Flux Storage Tank Max 4.2L
Power Supply 3-phase 5-wire system 220 V
More Specifications See data sheet/brochure
×
