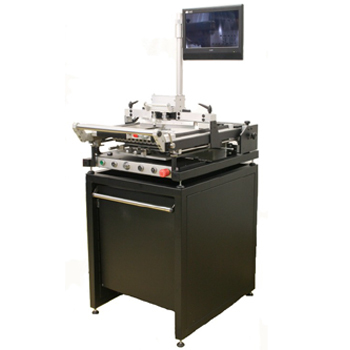

The S41 is intended for media where the highest print process reproducibility is required for a Semi-Automatic Stencil printer, adjustable squeegee system, and integrated high-resolution vision, assurance consistent quality for complex PCB assemblies.
Standard comes with the accessibility to unrestricted adjustment options for all relevant print parameters, full documentation and saving of print programs, complete reproducibility of print results - independent of the operator. PC interface and Printer Manager software for Windows11.
| Maximum stencil frame size | 550 x 470 mm |
| Smaller frame compatibility | Smaller frames than 550 x 470 mm can also be used in the S40 |
| Maximum PCB size | 400 x 340 mm |
| Printing type | Suitable for screen and stencil printing |
| Board compatibility | Designed for single- or double-sided printing |
| Travel path | Freely programmable travel path |
| Travel speed | Adjustable and controlled travel speed |
| Non-contact area (Z-axis) | 0 – 24 mm |
| X/Y/Theta adjustment and position accuracy | X/Y adjustment: ±12 mm, Theta: ±2.7°, Position accuracy: ±0.01 mm |
| Table lowering | Adjustable table lowering with controlled speed and pressure |
