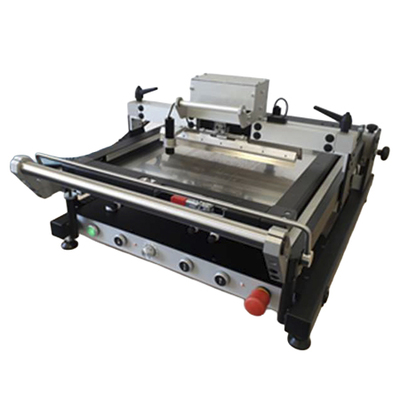

S40 AUTOMATIC STENCIL PRINTERS

S40 AUTOMATIC STENCIL PRINTERS

Data Sheet
The S40 Automatic Stencil printer is a high-precision device, with vision system, It automates the positioning, squeegee pressure, and stroke to ensure consistent, repeatable, and accurate printing, significantly reducing human error. The printing parameters are adjustable and programmable.
Machines are made to order therefore, orders are non-cancellable.
Pricing Information
QTY:
Out of Stock
Unit Price:
$15,800.00
Shipping Price:
$1,600.00
Total: $17,400.00

overview

The S40 Automatic Stencil printer is a high-precision device, with vision system, It automates the positioning, squeegee pressure, and stroke to ensure consistent, repeatable, and accurate printing, significantly reducing human error.

The printing parameters are adjustable and programmable.

Main Features

Vision system with
2 integrated CCD cameras
  • Appropriate for small and medium volume production.
  • Programmable squeegee travel.
  • Vision system with 2 Integrated CCD cameras and LCD monitor.
  • Printing parameters: adjustable and programmable.
  • Screen- or stencil printing of glue, solder paste, thermal grease and other substance.
  • Automatic reversible dual squeegee.
  • Single or double-sided boards.
  • Rapid tensioning frame.
  • Automatic table lowering / Z=10 mm.

specs

Frame size Max. 550 x 470 mm
PCB size Max. 400 x 375 mm
Printing area Max. 350 x 340 mm
Squeegee drive Electric drive control
Print speed 5-150 mm/s
Printing Single or double-sided boards
Table - adjustment accuracy +/- 0,01 mm
Air supply 8 Bars
Dimensions and weight 860 x 650 x 380 mm / ca. 86 kg
×
