Production Quality PCBs for the Makers!
  • DFM File Check - Eliminate CAM Holds
  • Any Drill Size larger than 0.010"
  • Trace Width / Spacing 0.006" / 0.006"
  • Internal Cutouts - Plated or Non Plated
  • Complex Board Shapes
  • Electrical Test Included
  • Green Soldermask - Top and Bottom
  • White Silkscreen - None, Top, Bottom or Both Sides
  • ISO and UL Certified
NEW! FR4 Tg180 & ENIG are our new Default Specs.
Pricing Information
Qty:
Lead Time:

Unit Price:
Total:
1Complete form to get instant quote
2Select quantity & lead time
3Upload gerbers & add to cart
Browse file
Qty8 days
10
25
50
100
Tips
  • 1. Select the number of layers (2 or 4).
  • 2. Enter the board size in inches.
  • 3. Select silkscreen side (None, Top, Bottom or Both Sides).
  • 4. Enter the part number and revision for your circuit board.
  • 5. Attach a zip files with all the board layers.
Need USA Quickturn PCBs?
  • 2 layers as fast as 24 hours.
  • 4 layers as fast as 48 hours.
  • Instant Quote
Need Offshore PCBs
  • We partner with multiple PCB factories in China and Taiwan allowing us to offer a broad range of manufacturing capabilities.
  • Select the factory that is best suited for your PCB project based on price, lead time and capabilities.
  • Instant Quote

Overview

Supported

  • Trace Width / Spacing 0.006" / 0.006"
  • Internal Cutouts - Plated or Non Plated
  • Complex Board Shapes
  • Electrical Test Included
  • Green Soldermask - Top and Bottom
  • White Silkscreen - Top, Bottom or both
  • Finish: ENIG (ROHS)
  • Material FR4 Tg180
  • Annular Ring 6 mil
  • Copper weight 1 oz
  • Board thickness 0.062"

Not Supported

  • Controlled Impedance
  • Controlled Dielectric
  • Blind & Burried Vias
  • Castellations Holes
  • Plated Slots
  • Counterbore
  • Blind Slot
  • Plated Edges
  • Countersink
  • Counterbore
  • Gold Fingers

PCB Panel Share Stack-Up

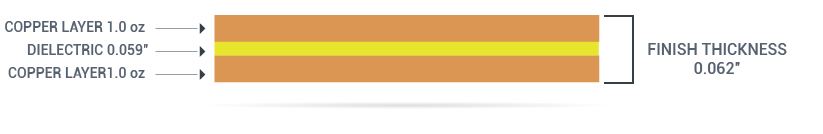

2 LAYERS (Front view)
Stackup 2 layers

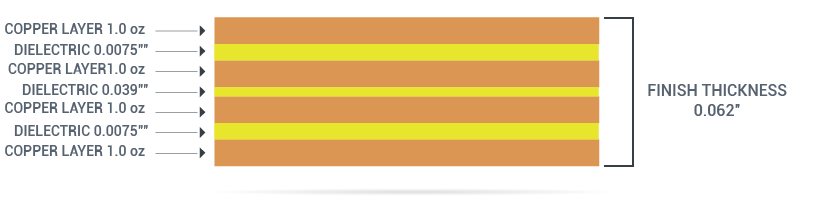

4 LAYERS (Front view)
Stackup 4 layers

UL, Date Code and other marking

By default we add a UL marking to the bottom copper layer, if there is no room on the bottom copper we add it to the bottom silkscreen. We add a Date Code and a serial number to the bottom silk screen layer.


What types of payments do you accept?

Payment terms are by PayPal or credit card through the PCB Unlimited Panel Share website. We accept PayPal, Visa, MasterCard, American Express and Discover.

Bank card transactions are processed electronically using a secure SSL website.

If you have more questions, please contact us at support@pcbunlimited.com

×
