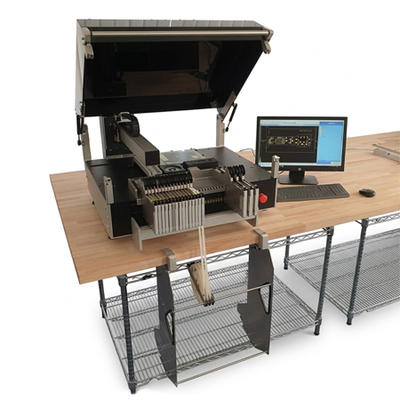

P20 Dekstop Automatic Pick and Place Machine

P20 Dekstop Automatic Pick and Place Machine

Part Number: P20 Data Sheet
The P20 features a powerful desktop automatic pick & place head with an automatic 6-tool nozzle changer and a top camera system for automatic fiducial recognition. The bottom optical alignment camera ensures perfect positioning of SMD components. Its intelligent feeder system supports CAN Bus communication, increasing reliability and flexibility in operation. The machine operates on Windows 10 and supports remote service via the internet.
Machines are made to order therefore, orders are non-cancellable.
Pricing Information
QTY:
Unit Price:
$30,000.00
Total: $30,000.00
P20 DESKTOP
Top camera system for automatic fiducial.

Features

  • Precision automatic SMT pick & place machine with vision system
  • Automatic pick & place head with 6-tool nozzle changer
  • Top camera system for automatic fiducial
  • Bottom camera for optical alignment of SMD components
  • Gerber and CAD editor support
  • Teach-in mode with electronic manipulator
  • Intelligent feeder system with CAN Bus
  • Vision inspection of solder paste printing and component placement
  • Operating system: Windows 10
  • Remote service via internet
  • Graphical user interface

specs

PCB Max. Placement Area 540 x 480mm
Components Range 0201 up to 40 x 80mm - Min. pitch 0,4mm
Components Packing Tapes / sticks / trays / bulk
Components Centering Non-contact alignment
Placement Rate Up to 1600 cph
Feeder capacity Up to 33
Resolution X / Y- axis – 0,008mm – linear encoder
Z - axis – 0,020mm – linear encoder
Placement Accuracy +/- 0,03 mm
Dimension And Weight 840 x 700 x 430 mm / ca. 95 kg
Power Supply Options 110-230V /50-60Hz /1150W /6 Mpa / 25 l/min
×
