Acrab-615 is an energy-saving, lead-free wave soldering machine designed to accommodate boards or panels, of a width of 615 mm (24.21inches) Max. The control system meets the requirements of several welding processes. The heating module has a horizontal reflow design making each heating zone be not influenced by adjacent zones to ensure accurate temperature curve. A leading-edge product with unparalleled heating performance.
Pricing Information
QTY:
Unit Price:
$60,000.00
Shipping Price:
$0.00
Total: $60,000.00

Main Features

  • Nozzle: Japan Kuroda Seiko nozzles, adjustable atomizing area, ensuring long-time spray uniformity and reliability.
  • Spray control: computer control or manual switch adjustment; precise control of spray time and speed, economy and environmental protection.
  • Digital parameters recording: flux flow, spray flow, angle, density, width and other parameters can be recorded.
  • Cleaning device: automatic cleaning, modular design, easy maintenance.
  • Temperature protection: third-party over-temperature protection, multiple protection layers to ensure safe operation.
  • Products comply with CE, CCC, UL and other standards and specifications.
  • User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders, economic functions, emergency/manual transmission function and tool-free maintenance, reduce equipment failure rates.
  • Heating module: horizontal reflow design makes each heating zone not to be influenced by adjacent zones to ensure accurate temperature curve, while ensuring high production capacity and heat exchange capacity, and achieve high adaptive capacity.
  • Moving parts: computer adjustment, stepper motor control, accuracy and stability, to ensure accurate spray.
  • Temperature control: PLC + PID independent temperature control, real-time monitoring preheat temperature.

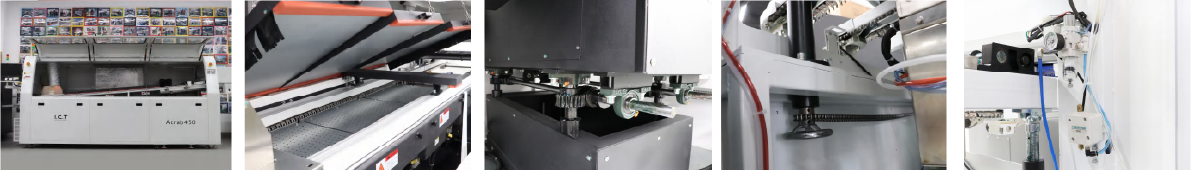

Acrab pcb cleaners

specs

Item Acrab 615
Dimension 4490*1630*1735
Weight Approx.2500kg
Power Supply 3P5W, AC380V 50/60Hz
Startup Power 38kw
Operation Power 10kw
Control System PC+PLC
Spray System
Transmission Method Step motor
Spray Pressure 0.25Mpa--0.4Mpa
Auto Flux Supply Standard
Flux Flow 10-100ml/min
Exhaust Top;(Option:External fan)
Exhaust Diameter Φ250mm
Exhaust Capacity 25m3/min
Preheating System
Preheating Mode Hot air/IR
Control Mode PID+SSR
Preheating Zone 3(Bottom)
Preheating Length 1800mm
Preheating Temp. (Room Temperature)-250℃
Warm-up Time(min) Approx.15min (Setting 150℃)
Conveyor System
PCB Width(mm) 50-615mm
Conveyor Direction L~R (Option: R~L)
Conveyor Speed 0-2000 (mm/min)
Conveyor Height 750±20 (mm)
Available PCB Height Top 120mm (Option: 250mm), Bottom 15mm
Finger Heavy Duty Double Hook Titanium Claw (Standard) Option: Spring Pressing Finger, Duck Mouth Finger
Finger Cleaning Brush
Conveyor Width Control Manually
Conveyor Angle 4~7degree
Soldering System
Solder Pot Style Mechanical Motor drive
Solder Pot Material Cast Iron
Solder Pot Temperature 300℃
Wave Adjustment Inverter
Solder Pot Capacity Lead-free 700kg
Solder Pot Warm-up Time Approx.150min (Setting: 250℃)
Cooling System
Cooling Method Cooling Fan
×
